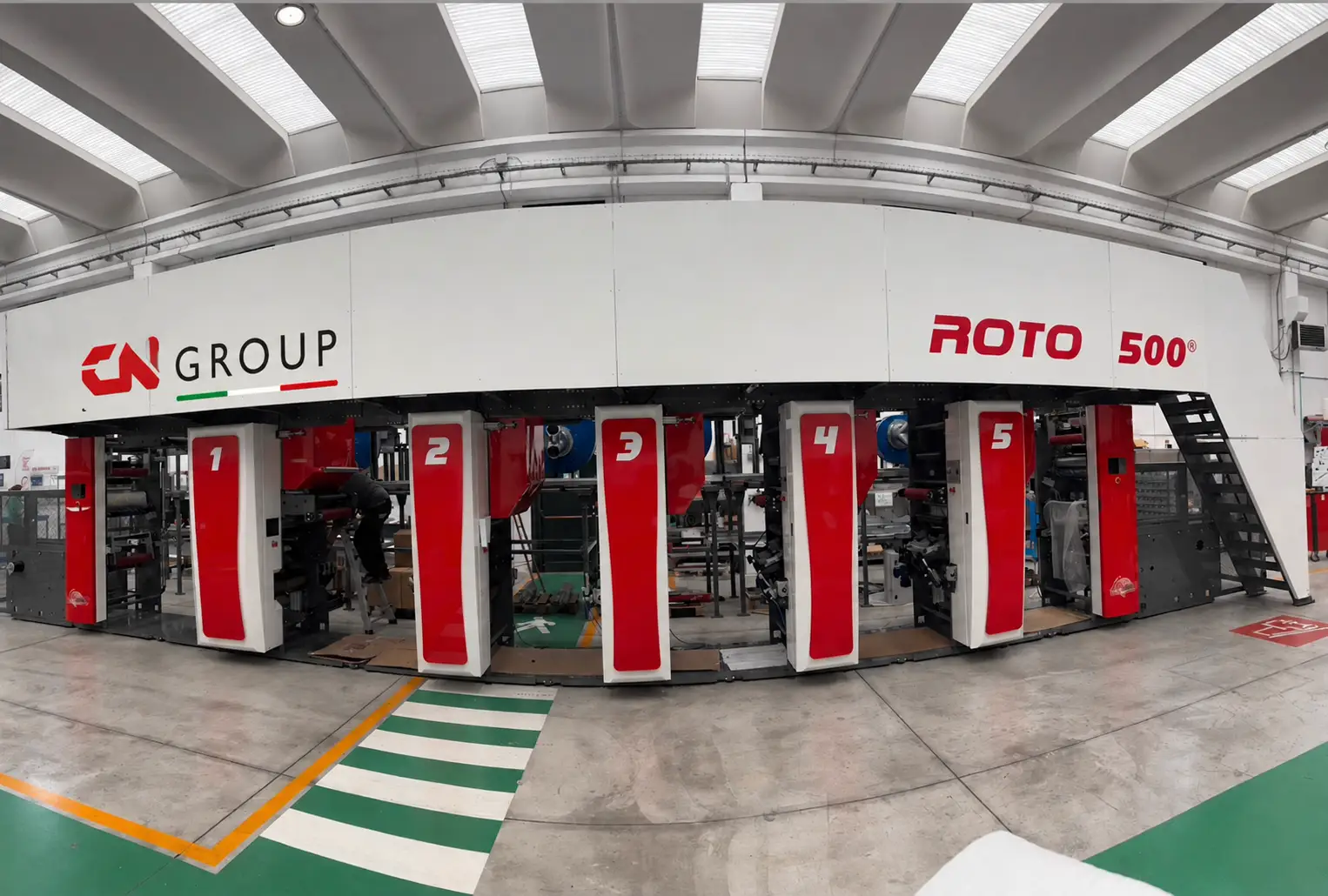

ROTO 500®
ROTOGRAVURE Printing Machine
The printing system can print on:
PET, BOPP, BOPA, PVC, paper, cardboard, aluminum, and laminates.
The photo shows a machine built for a 500 mm width and featuring 5 colors for a customer who prints aluminum for wine capsules. It can be customized to the customer's needs, typically from 1 to 10 colors, and for reels with widths from 300 mm to 1400 mm and diameters ranging from 600 mm to 1200 mm.
Print speeds range from 50 m/min to 500 m/min.
CNGROUPITALY
SPHERA 650CSC®
Double patent: DESIGN + TECHNOLOGY
- Combination printing machine: 2 Flexo + 4 Digital
- High performance
- High definition flexographic printing
- High definition and high speed digital printing.
- AI
- TOOLESS®
- READYTOPRINT®
- NOSTOPRINT®
- RIBFORWORK®
- STARTSTOP®

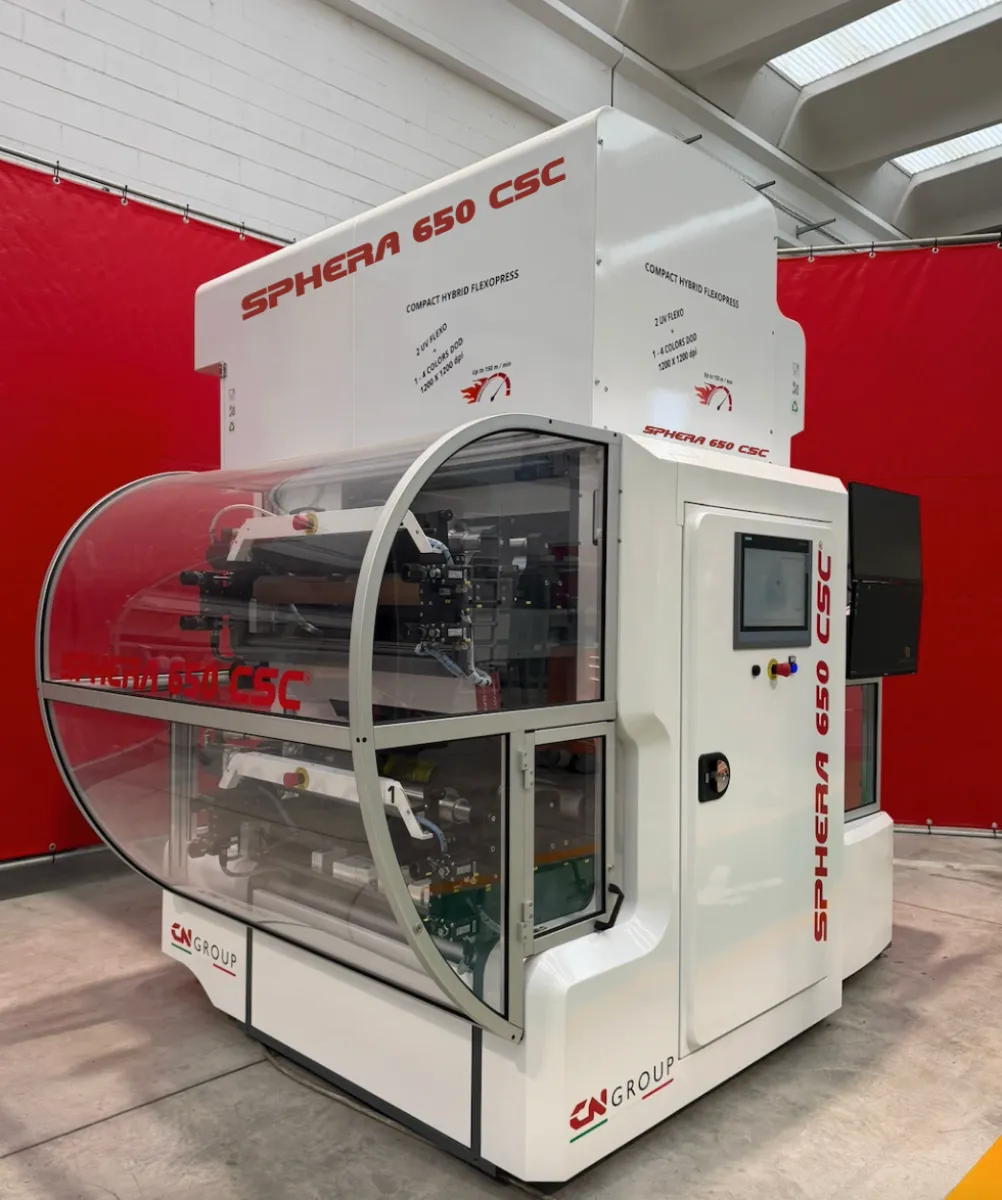

Based on a central drum printing system, this patented machine packs a concentration of patented technology into a compact 2.5 meters.
UNIQUE IN THE WORLD
Print on:
paper, plastic film, PTFE, nonwovens, all types of laminates, cardboard, textile fibers, rubber.
Printable material thickness from 10 microns to 2 mm.
Customizable based on customer needs and for rolls with a width of 300 mm to 1300 mm and diameters ranging from 600 mm to 1000 mm.
Flexographic printing speed from 50 m/min to 350 m/min.
Digital printing speed from 80 m/min to 150 m/min.
ULTRA-COMPACT MACHINE THAT COMPRISES A PLENTY OF TECHNOLOGY IN 2.5 METERS
WITH ONLY 5.7 LINEAR METERS OF MATERIAL THREADING
CNGROUPITALY
TRBM750®
Double-shaft slitter rewinder made entirely of stainless steel, specifically designed for processing rolls of medical products (plasters, gauze, etc.), food, and pharmaceutical products.

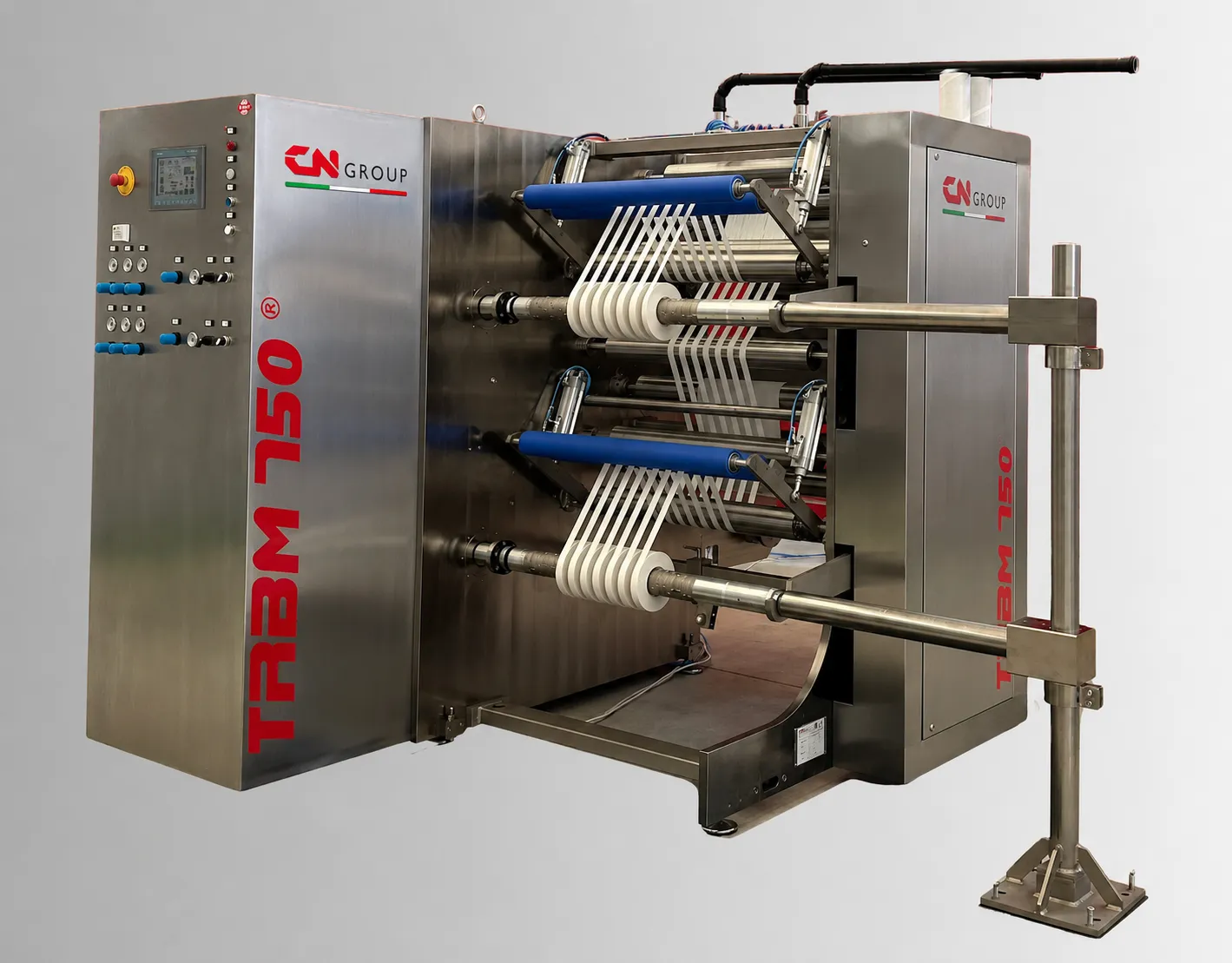

The image shows a machine built on a 750mm width, which can be customized to customer requirements and is suitable for rolls with widths ranging from 300mm to 1200mm with diameters ranging from 600mm to 1000mm.
Cutting speed from 50m/min to 600m/min.
Dual cutting system.
Integrated roll unloading system.
CNGROUPITALY
TRB1200®
Double-shaft slitter rewinder for processing rolls of flexible materials:
PE, polyester, laminated films, self-adhesive labels, paper and cardboard, aluminum, and flexible packaging.

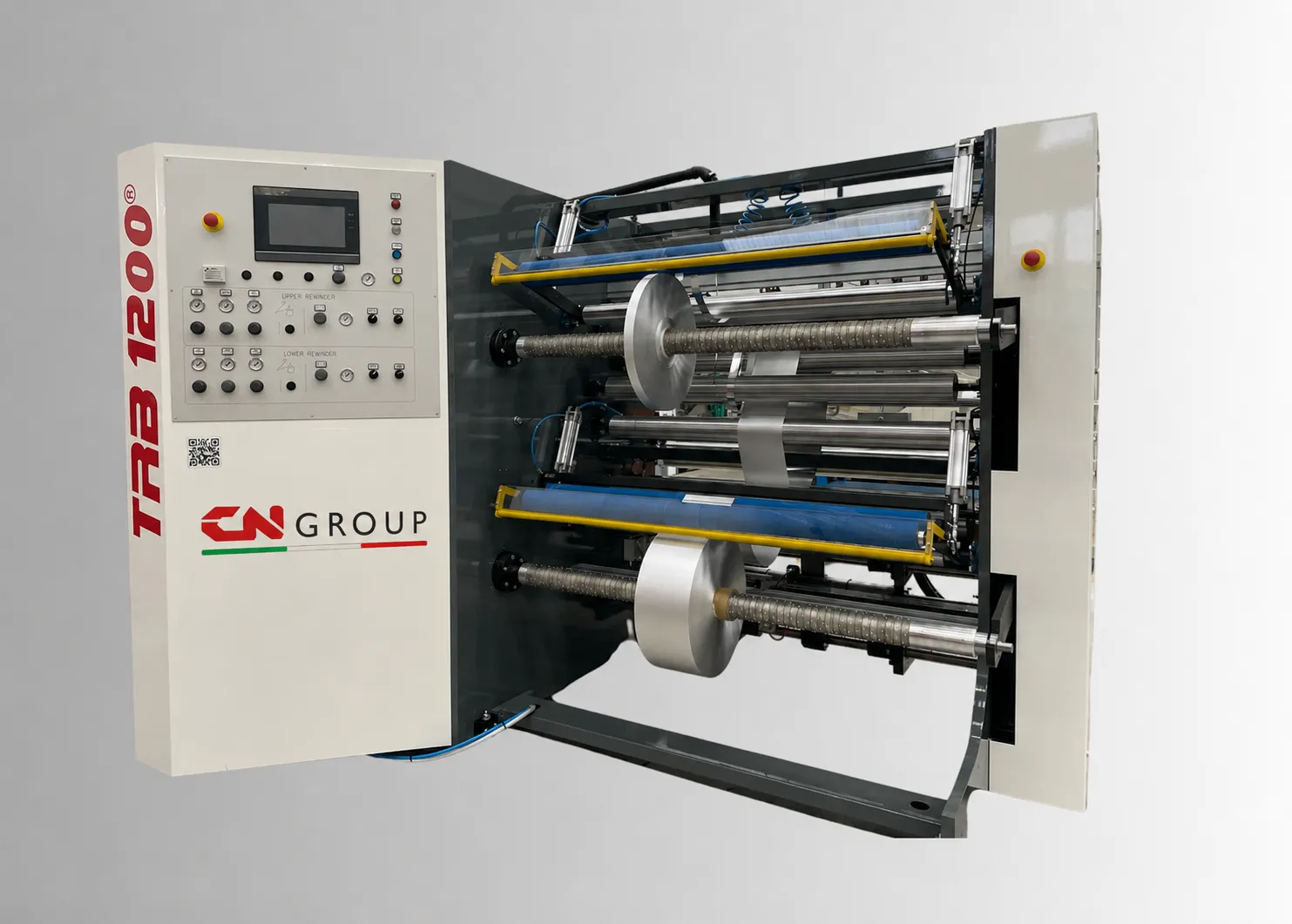

The image shows a machine built on a 1200mm width, which can be customized to customer requirements and, approximately, for rolls with widths ranging from 300mm to 1200mm with diameters ranging from 600mm to 1000mm.
Cutting speed from 50m/min to 600m/min.
Dual cutting system.
Integrated roll unloading system.
CNGROUPITALY
PASSPORT 1400®
Central drum printing press with 4-color UV flexo and a 4- to 6-color digital head.
Available with print widths from 400 to 2000 mm.

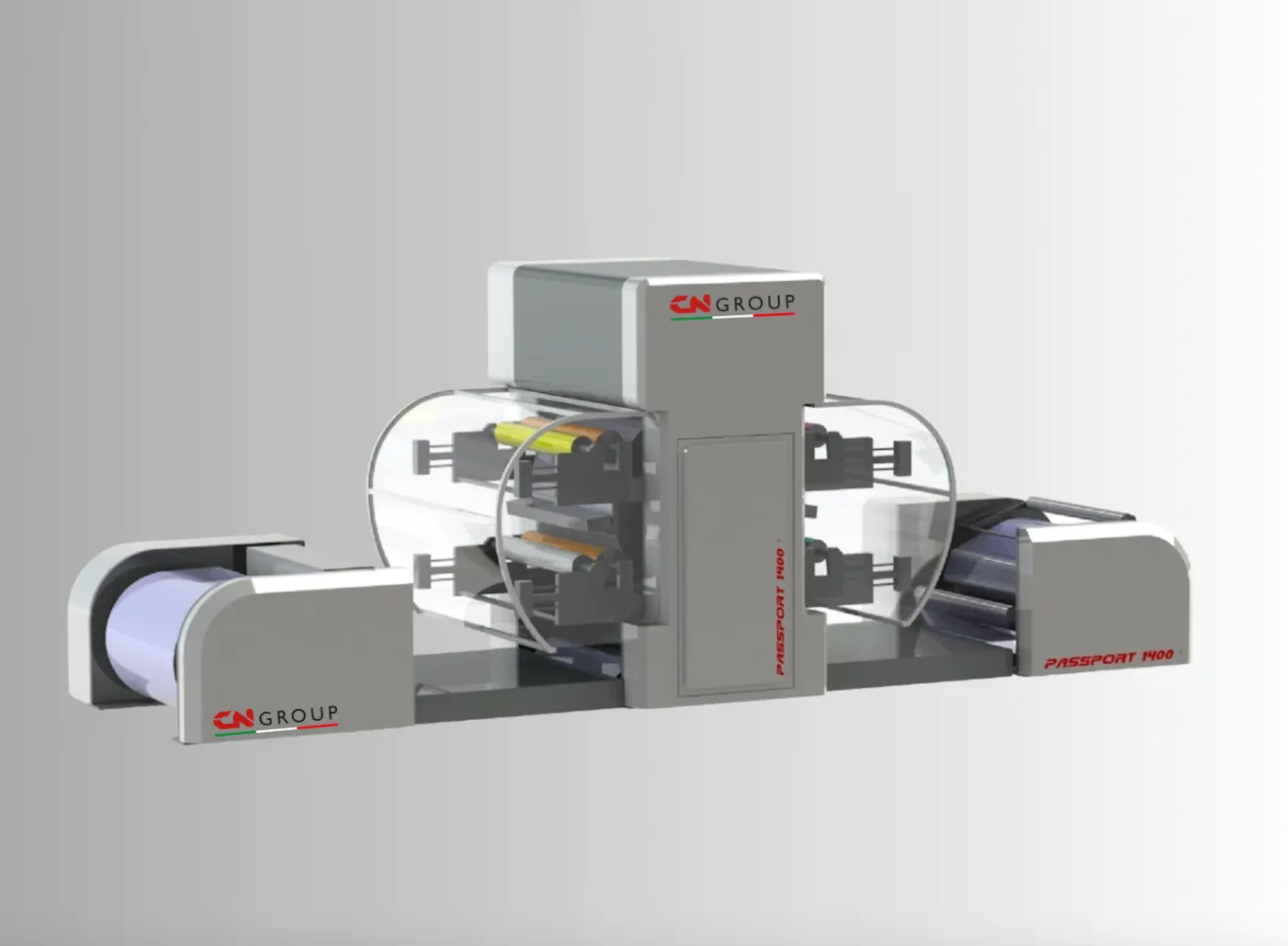

The image shows a machine designed for jobs where the 4-color flexo can be used for solid backgrounds, precision printing, and post-printing protective lacquers.
Specifically designed to enable passport printing and lacquering in a single print pass.
Applied artificial intelligence makes the machine easy and intuitive to operate.
CNGROUPITALY

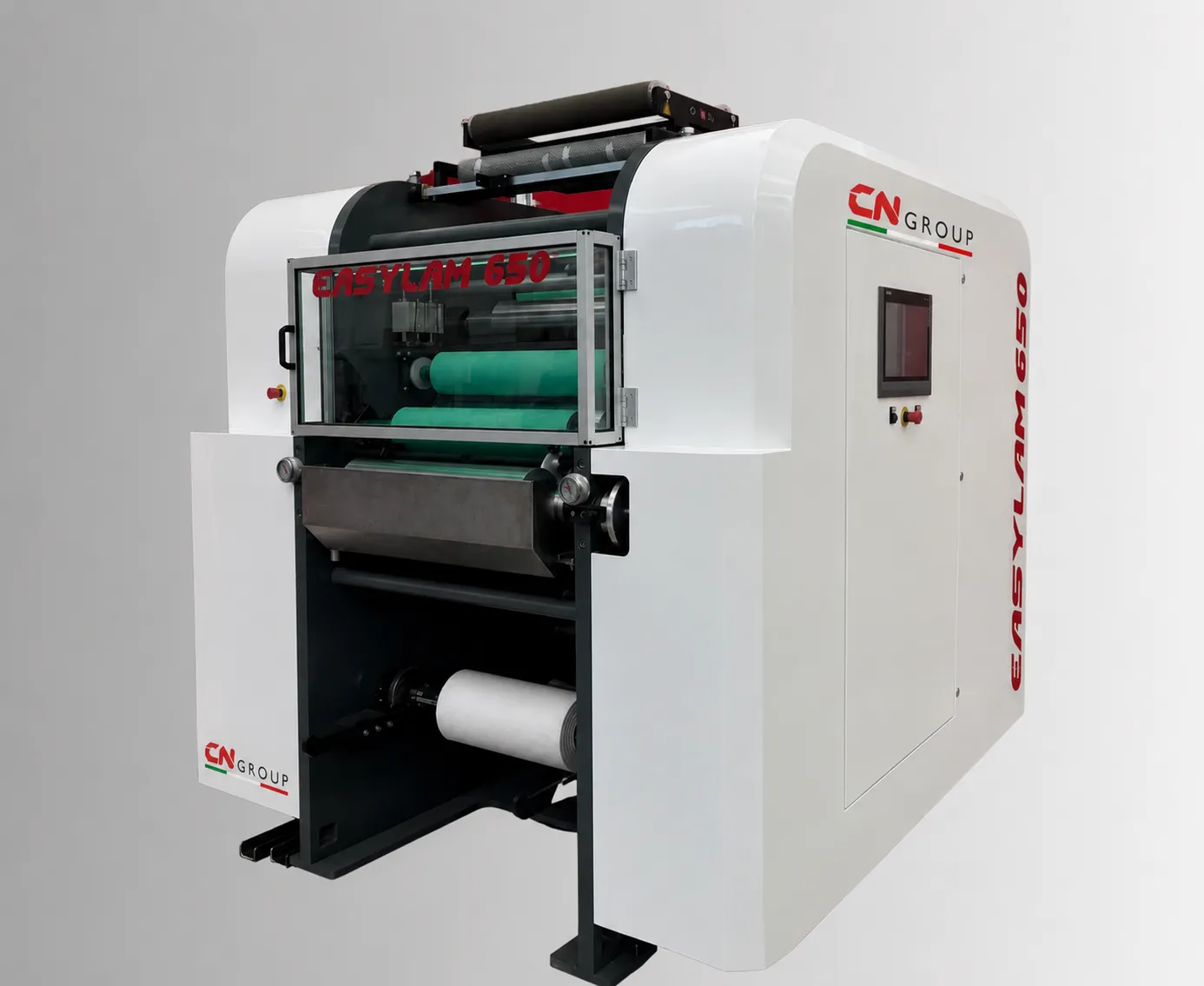

EASYLAM 650®
Compact Laminating Machine
For use with single- and two-component adhesives, it laminates all flexible films, both metallized and non-metallic, as well as paper, aluminum, etc.
It laminates with high precision at speeds up to 500 m/min.
Patented compact system eliminates the risk of injury from reel rotation.
The image shows a machine built on a 650 mm width, customizable to customer requirements and, approximately, for reels with widths ranging from 300 mm to 1300 mm, with diameters ranging from 600 mm to 1000 mm.
CNGROUPITALY

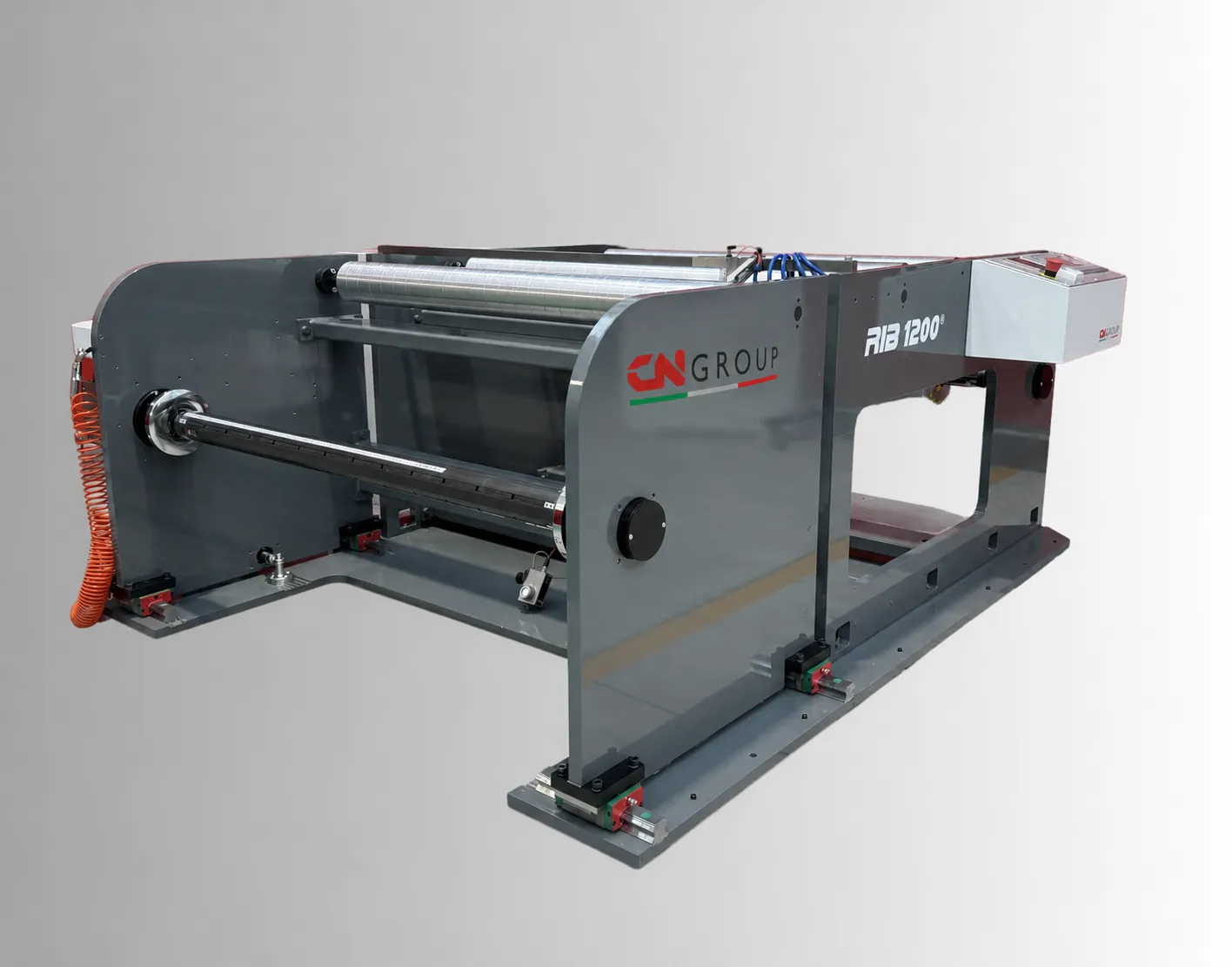

RIB1200®
Heavy-gauge rewinder for flexible plastic materials.

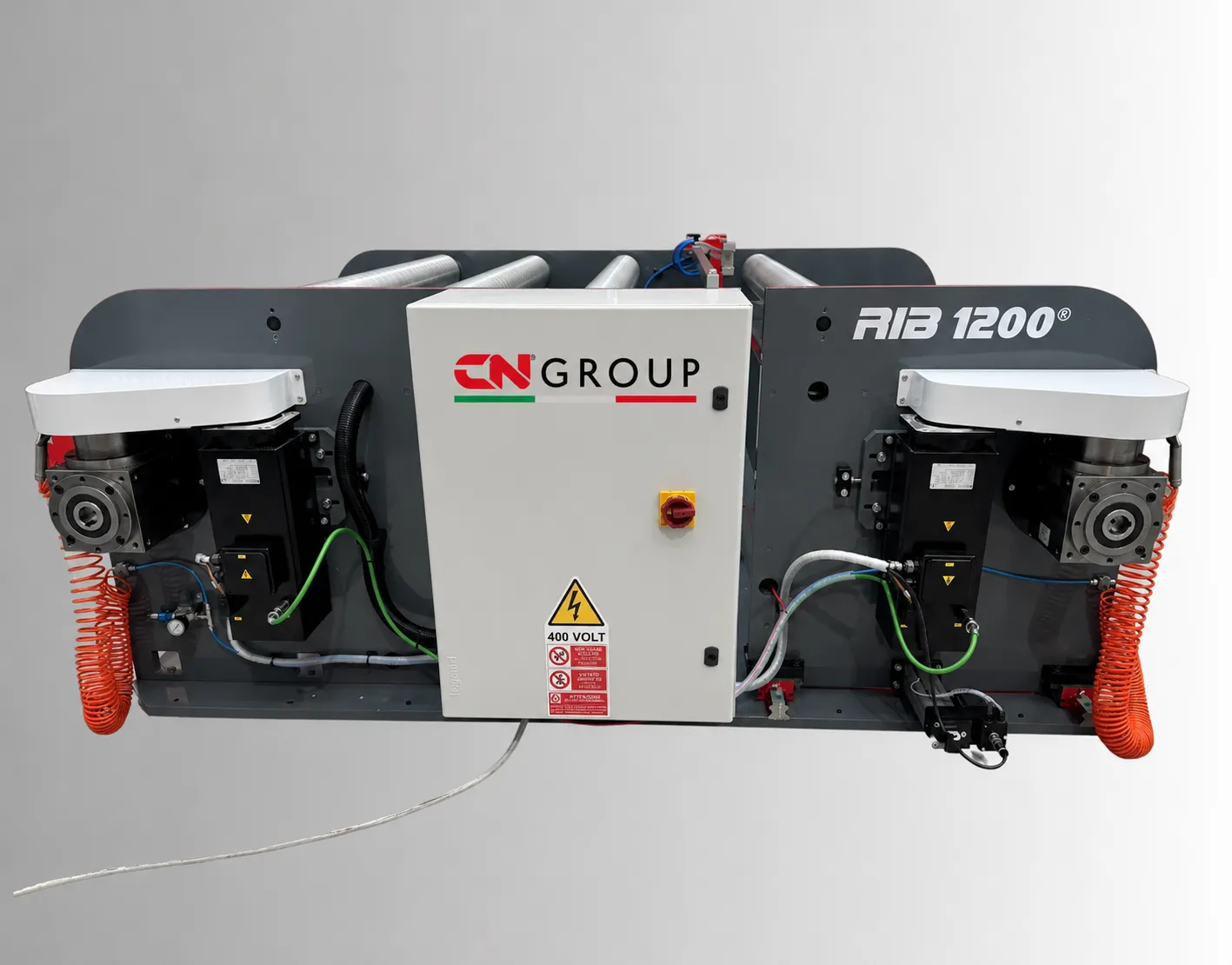

The image shows a machine built to process Teflon reels.
CNGROUPITALY

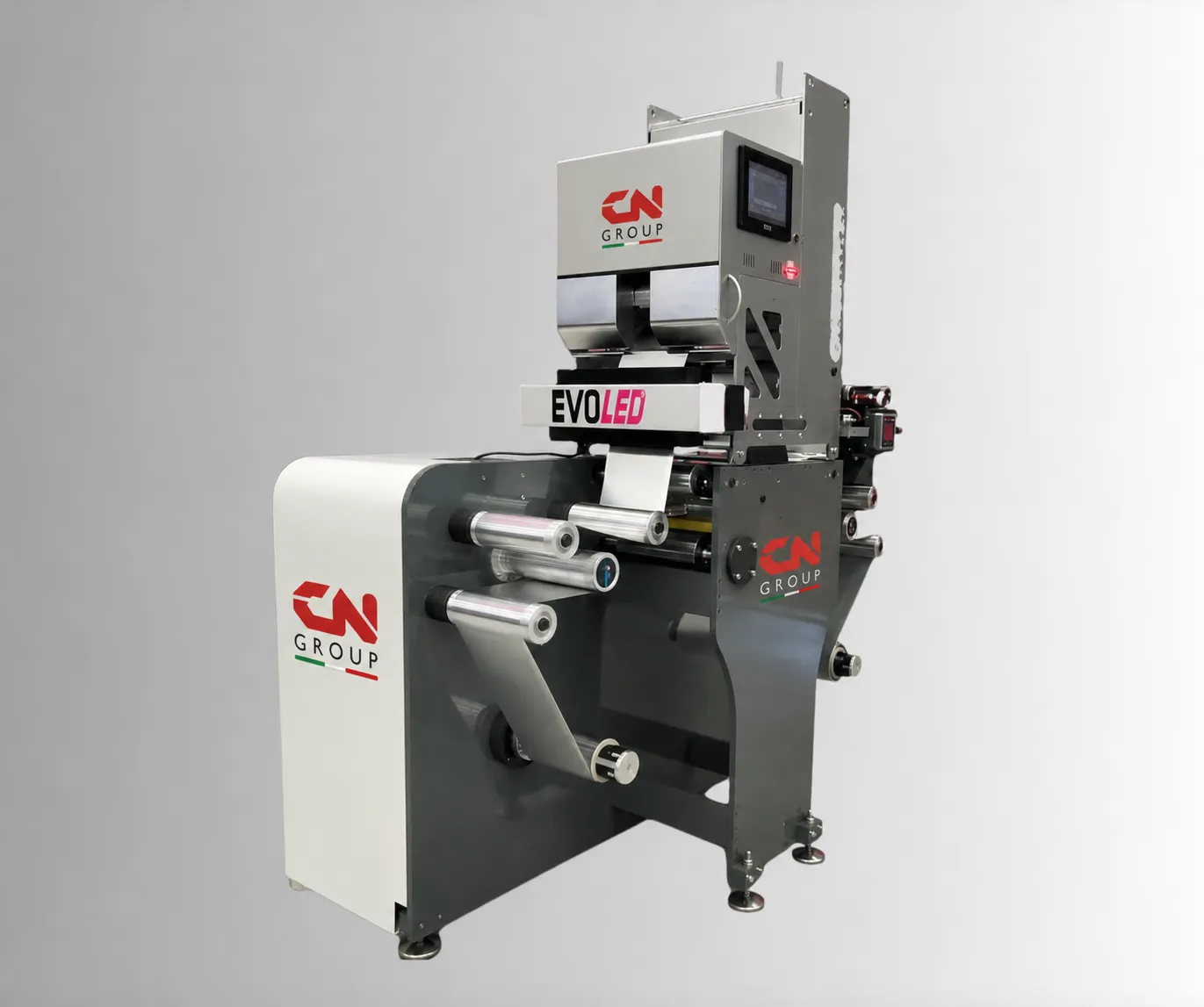

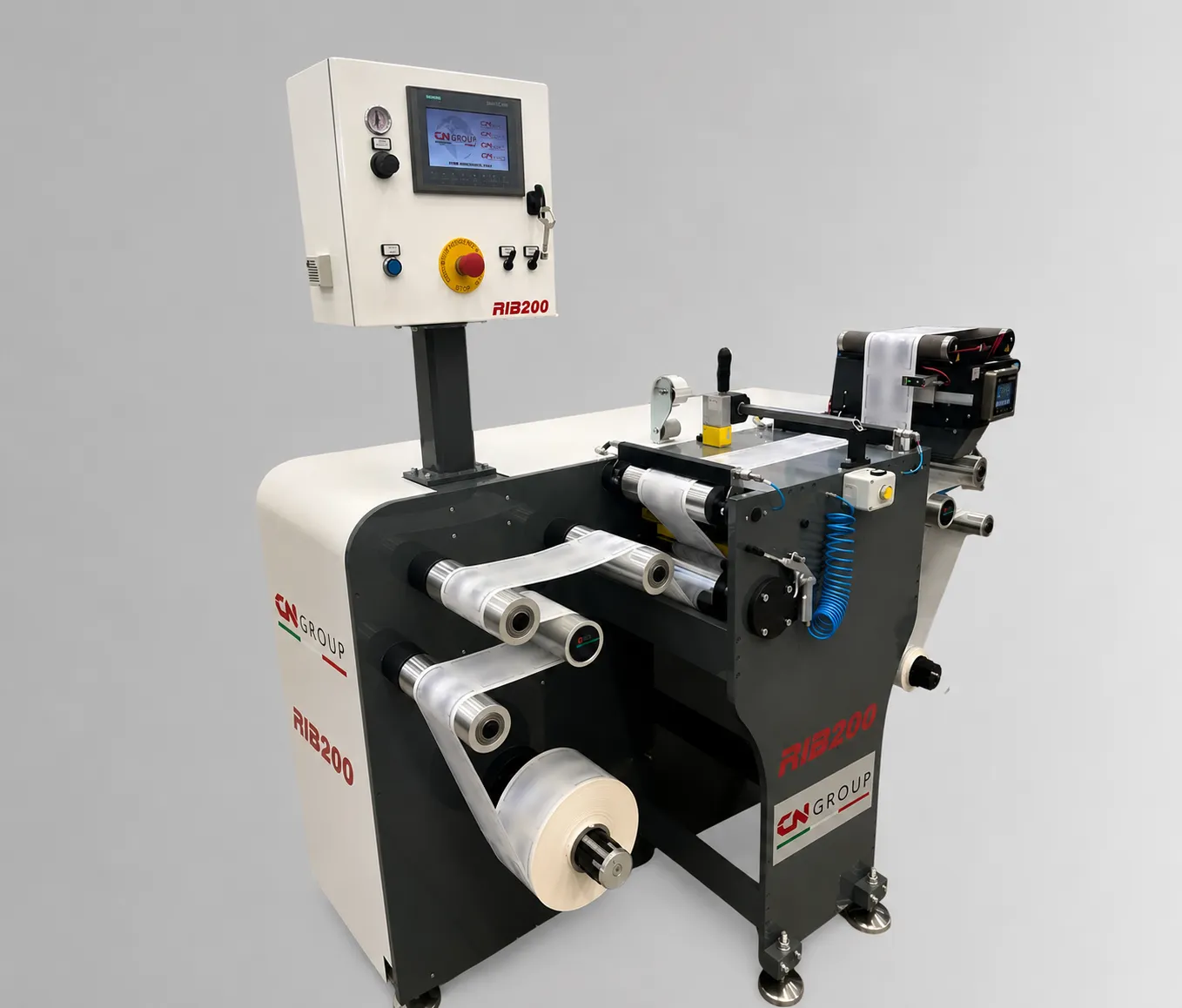

RIB200®
Narrow-web rewinder with cantilevered shafts for rolls ranging from 200mm to 600mm wide and with diameters ranging from 200mm to 600mm.

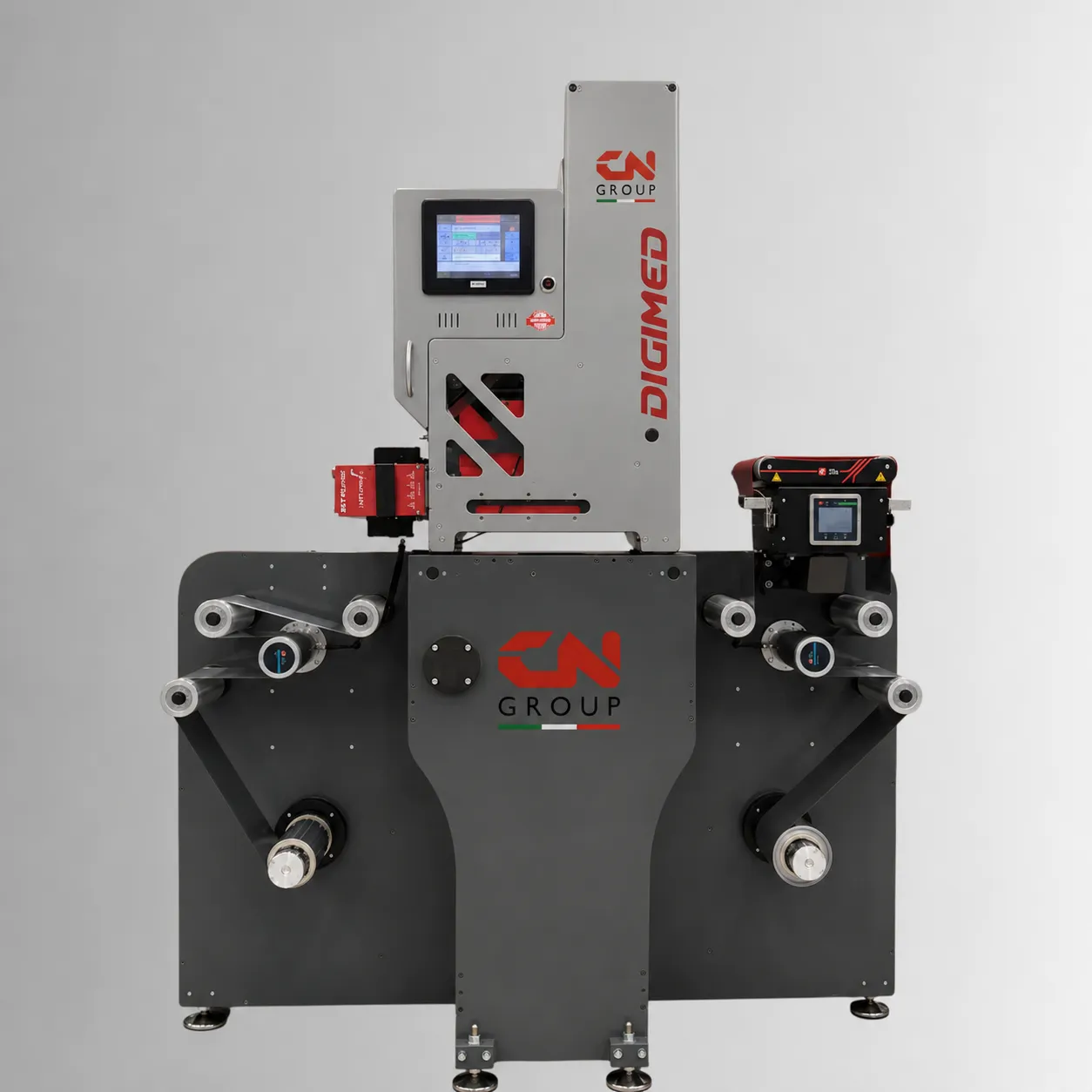

The image shows a machine built on a 200mm web.
The machine can accommodate a digital print head.
CNGROUPITALY

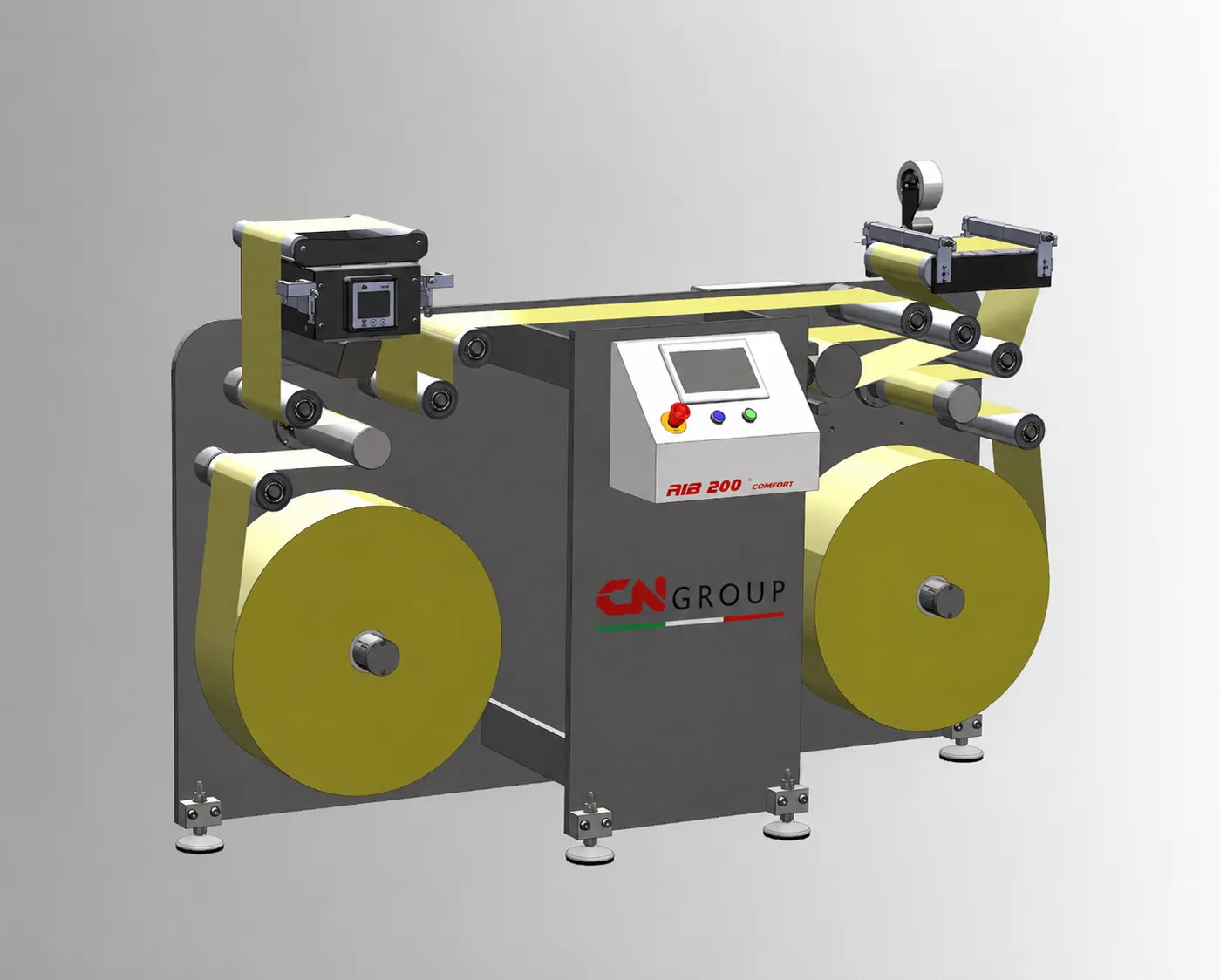

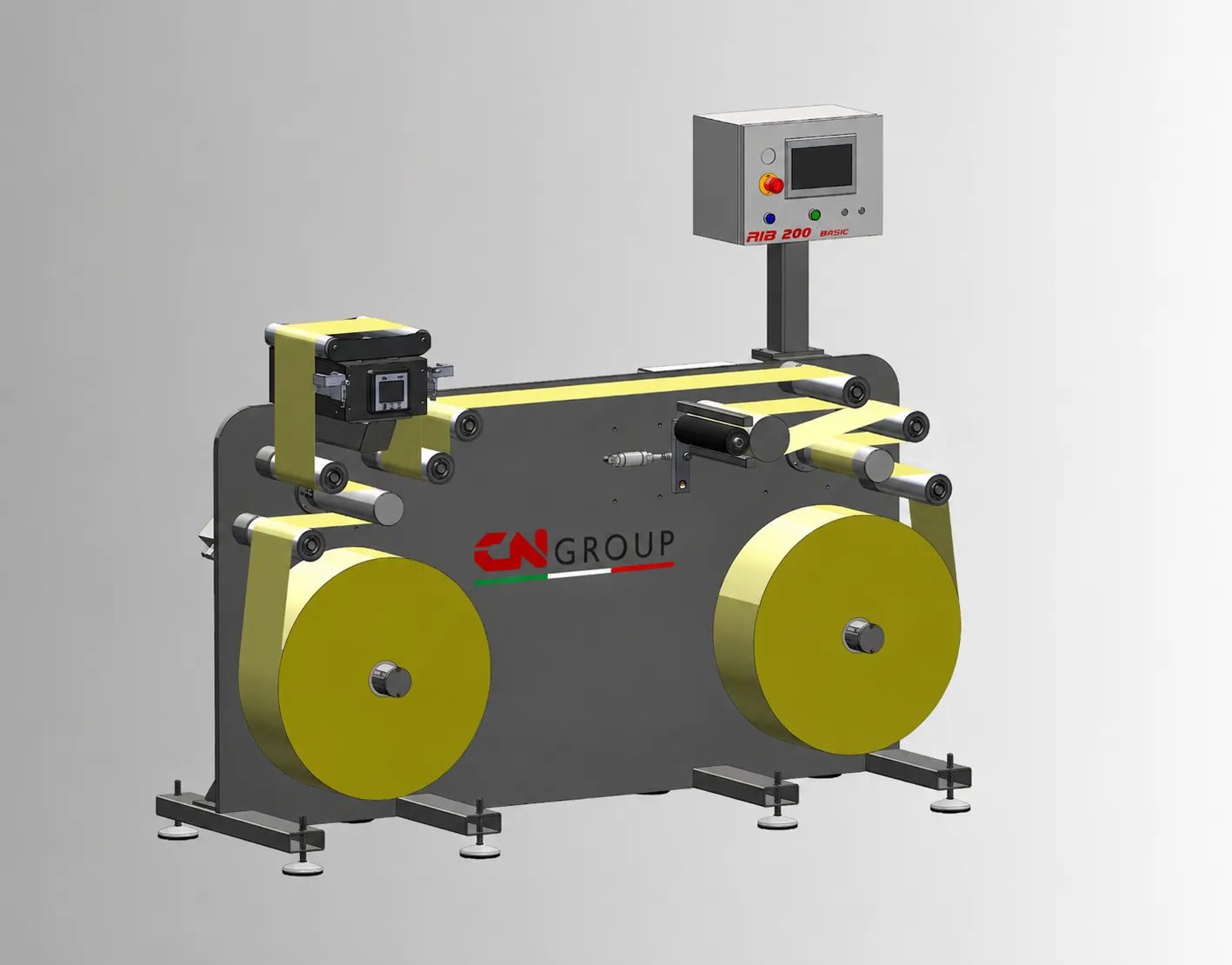

RIB® LINE FOR DIGITAL PRINT
BASIC, STANDARD, DELUXE

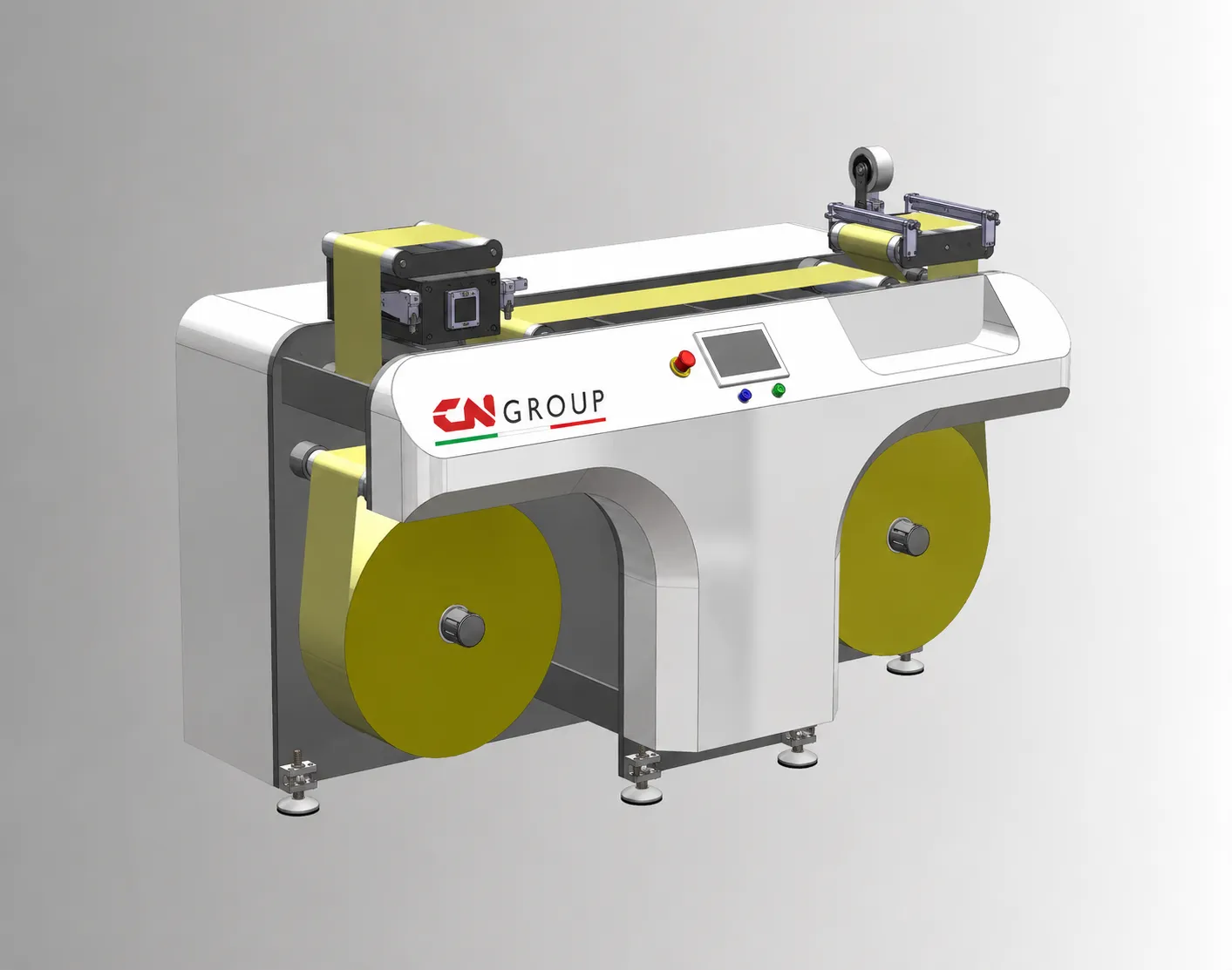

The image shows the three rewinders in the new RIB® series, designed to accommodate any brand of digital printhead. Simple, compact, and affordable, they allow a first entry into the world of digital printing without being too expensive. Compact, high-performance, and technologically advanced.
CNGROUPITALY

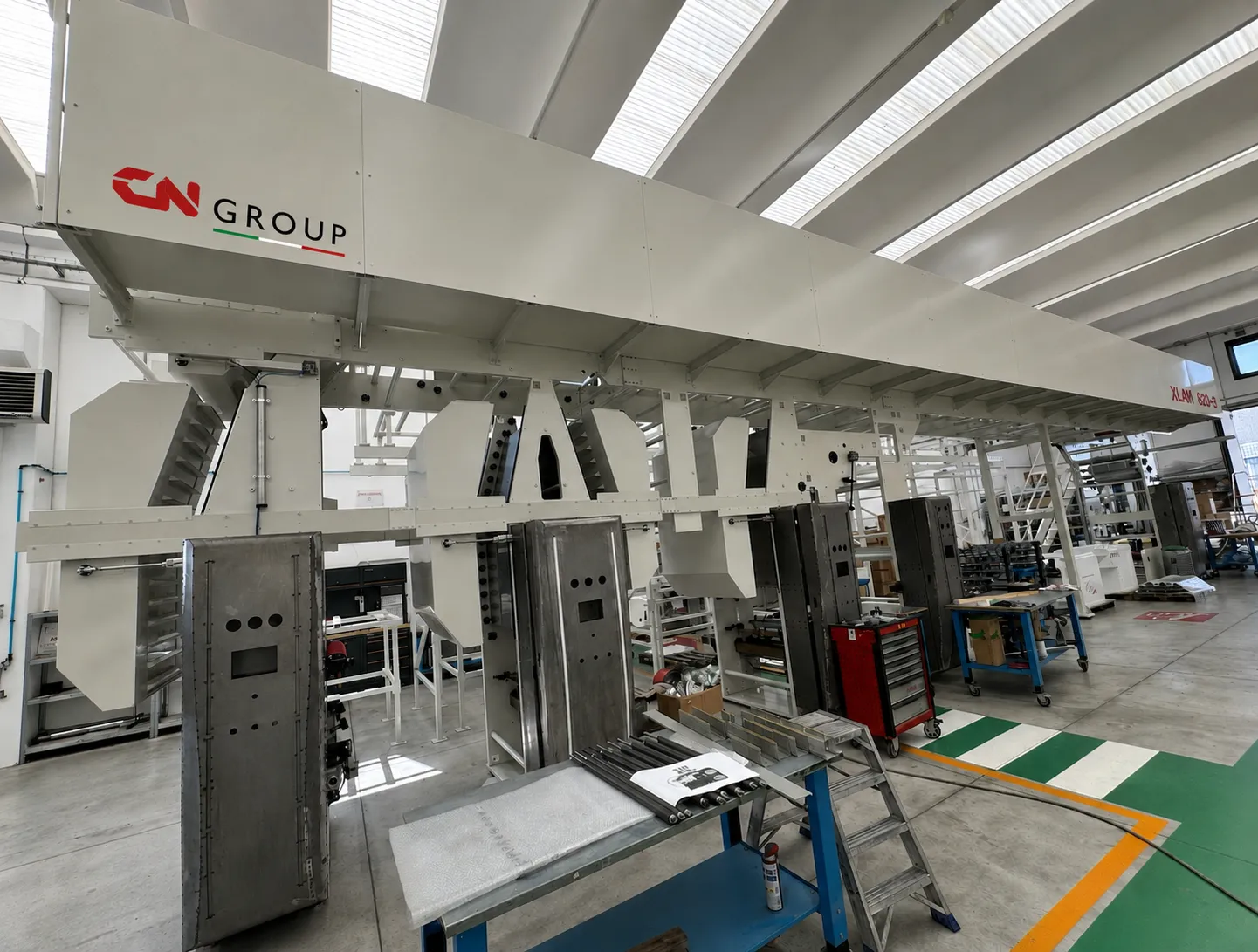

X-LAM®
The image shows a rotogravure coating machine with three coating units and a custom-designed drying bridge.
Under construction.
CNGROUPITALY

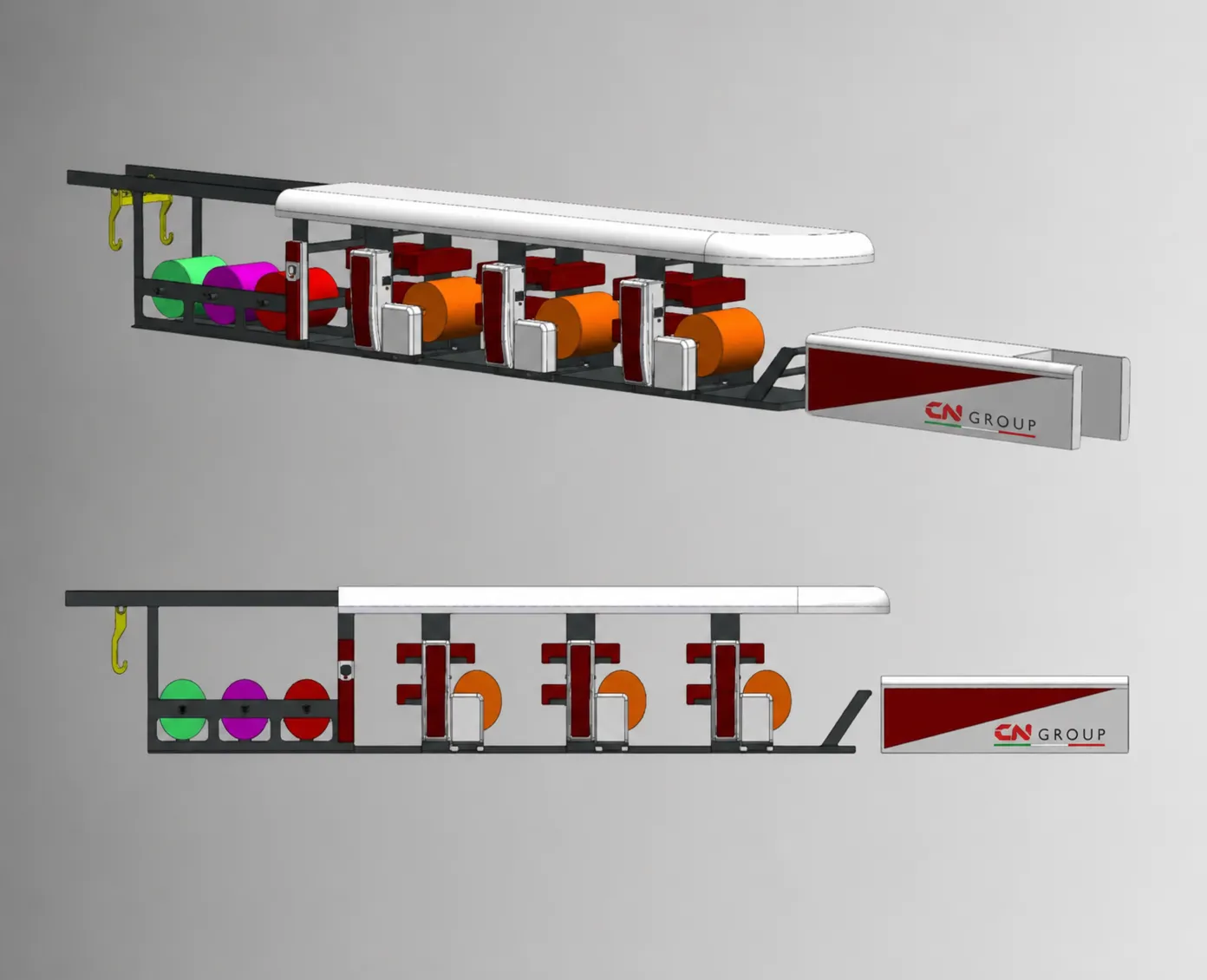

CNT PONOS 1200 SYNCRO®
Three-color flexographic printing line with inline cutter.
The image shows the line designed to allow simultaneous printing and lamination on three reels and cutting to final formats in a single pass.
CNGROUPITALY
NEXLAMLAB®
Laboratory laminator/laminator

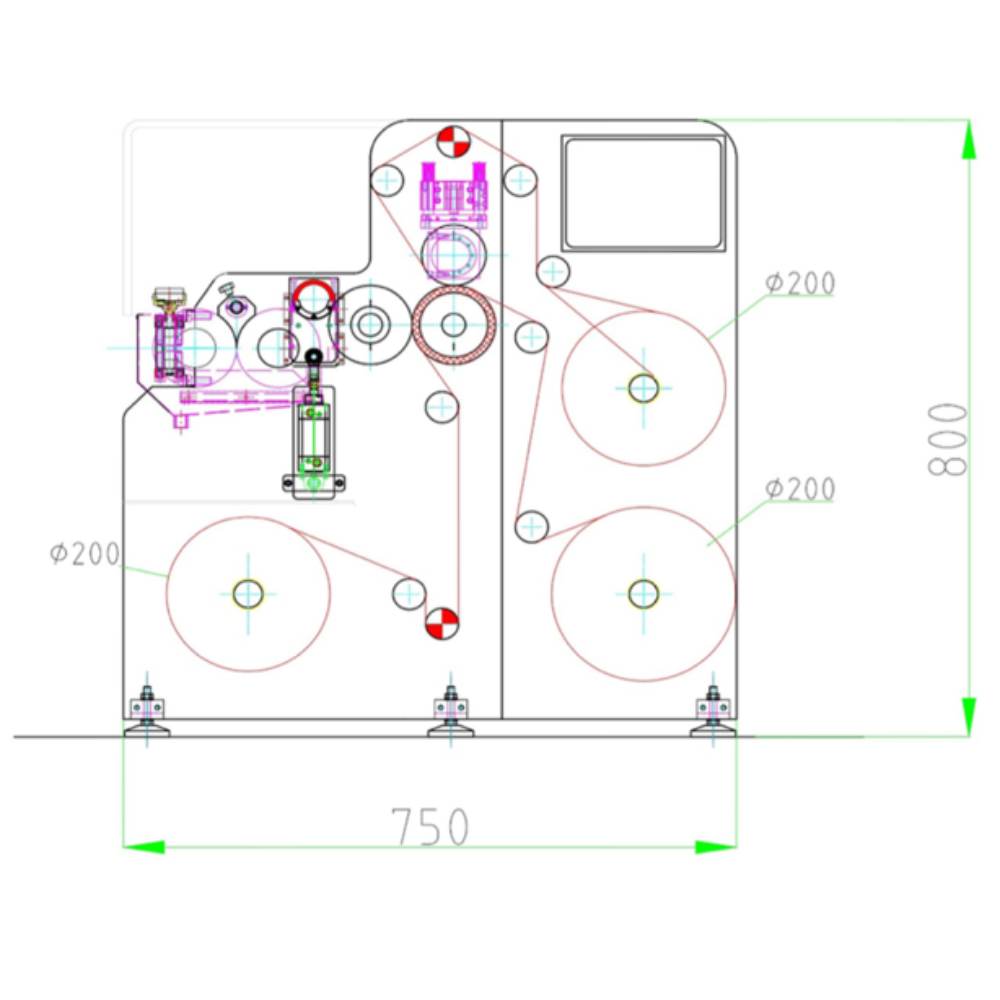

The image shows a machine built on a 200mm width.
The width can be varied according to customer requirements.
CNGROUPITALY

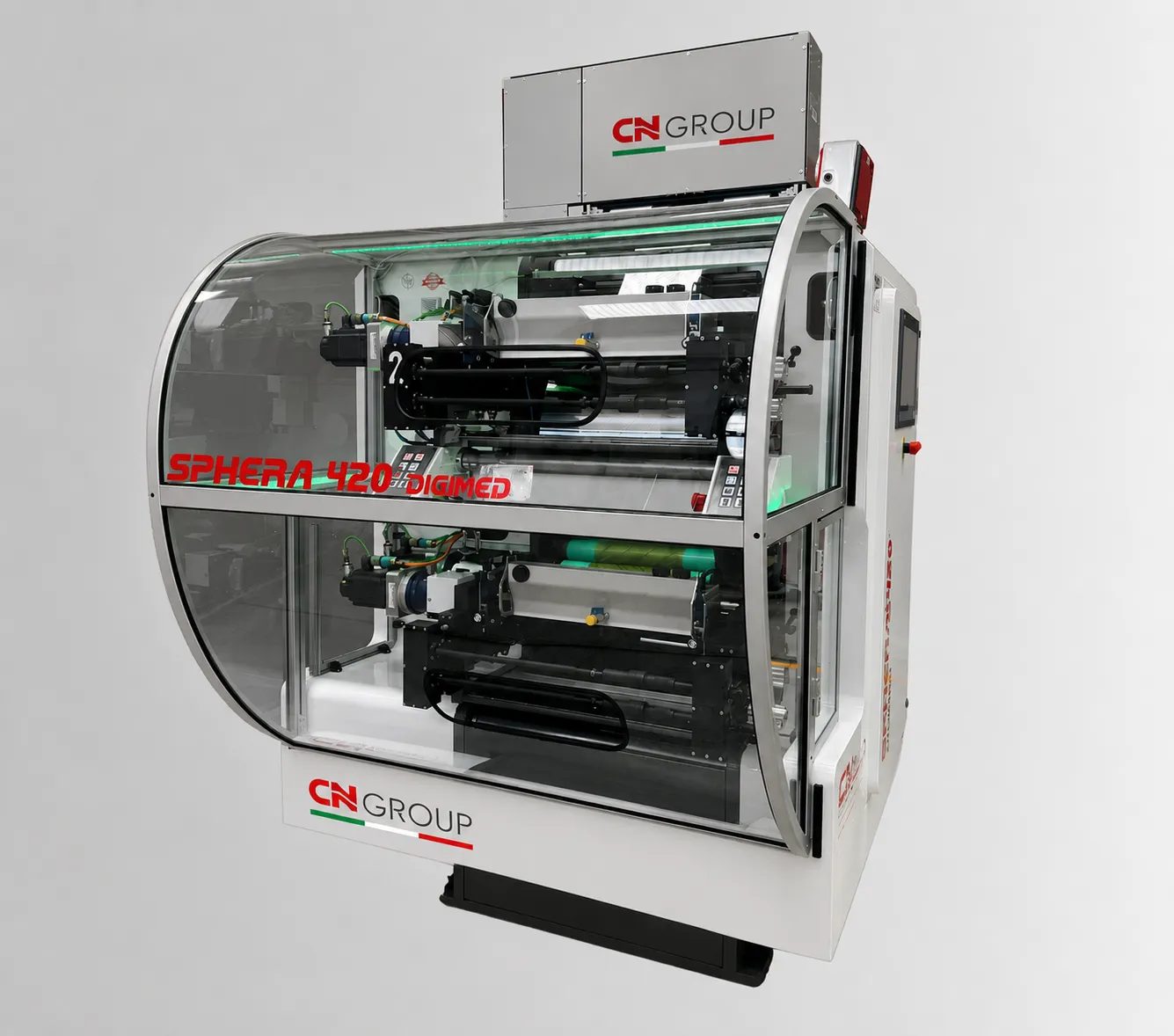

SPHERA 420® DIGIMED
Double Patent: DESIGN + TECHNOLOGY
Combination Flexo + Digital Printing Machine
Based on a central drum printing system, this patented machine packs a wealth of patented technology into a compact 2.5m footprint.
The image shows a machine equipped with two UV flexo units and can be integrated with its monochrome digital printing module for variable data.
The machine, designed and built for aluminum pharmaceutical blisters, prints on paper, plastic film, PTFE, nonwovens, and all types of laminates.
Built and sold in a 420mm width, it can be customized to customer requirements and is suitable for rolls with widths ranging from 300mm to 1300mm with diameters ranging from 600mm to 1000mm.
Flexo printing speeds range from 50m/min to 350m/min.
Digital printing speed from 80m/min to 150m/min
CNGROUPITALY
X-DOTS 630®

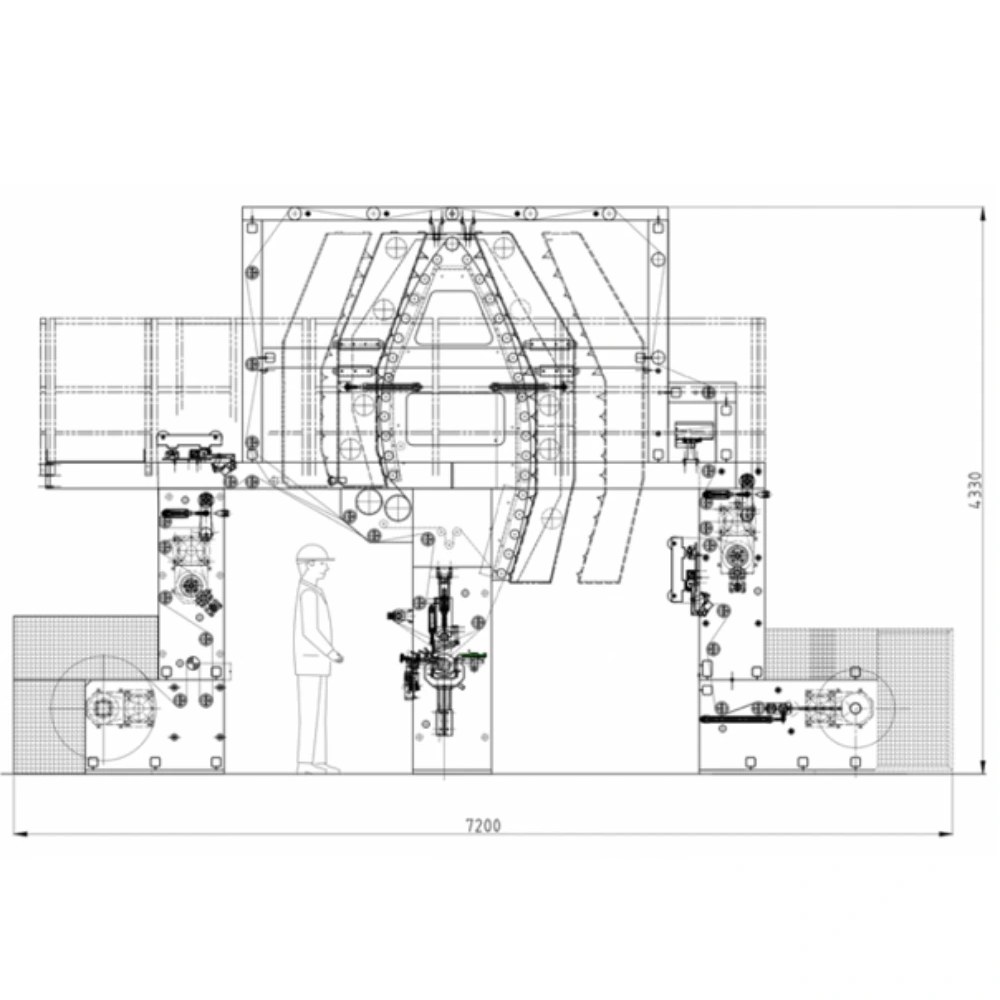

The image shows a machine built on a rotogravure basis specifically for "separating dots" printing.
It can be made to measure based on customer requirements and is typically suitable for rolls with widths ranging from 300mm to 1300mm.
